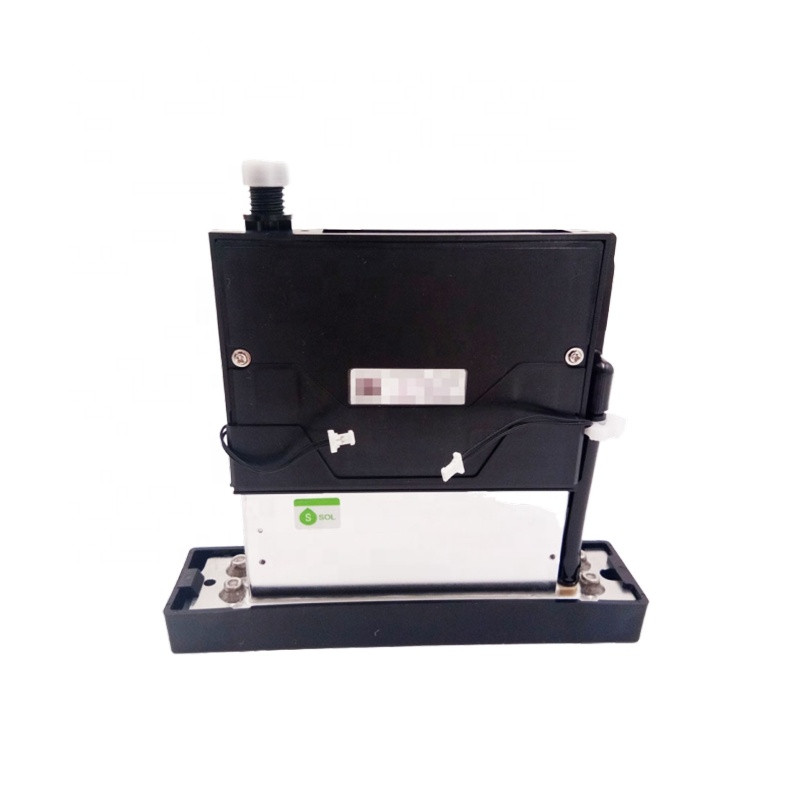

Model: SEIKO SPTU1024GS-7PL Printhead
Type: Industrial-grade piezoelectric inkjet printhead
Application: High-speed commercial/industrial printing (textile, packaging, labels, etc.)
Key Features
✔ High Precision – Delivers fine droplet control (e.g., 3.5–14 pL) for sharp prints.
✔ Multi-Ink Compatibility – Works with solvent, UV, dye, or pigment-based inks.
✔ Durability – Robust design for long-term industrial use.
✔ High-Speed Printing – Optimized for fast production environments.
✔ Easy Integration – Digital interface (SPI/parallel) for seamless printer compatibility.
Technical Specifications
Nozzle Count： 256 or 512 (varies by model)
Resolution： Up to 600–1200 DPI
Drop Size： Adjustable (e.g., 3.5 pL, 7 pL, 14 pL)
Operating Voltage： 24V/36V (printer-dependent)
Interface： Digital (SPI or parallel)
Ink Compatibility： Solvent, UV, water-based, eco-solvent
Installation & Maintenance
Installation Steps:
Power off the printer and disconnect cables.
Remove the old printhead carefully (follow printer manual).
Align & secure the new printhead (avoid touching nozzles).
Run calibration & nozzle checks to ensure proper function.
Maintenance Tips:
Regular cleaning (use approved cleaning fluids).
Avoid ink drying – Prime nozzles if unused for long periods.
Check for clogs – Perform test prints periodically.
