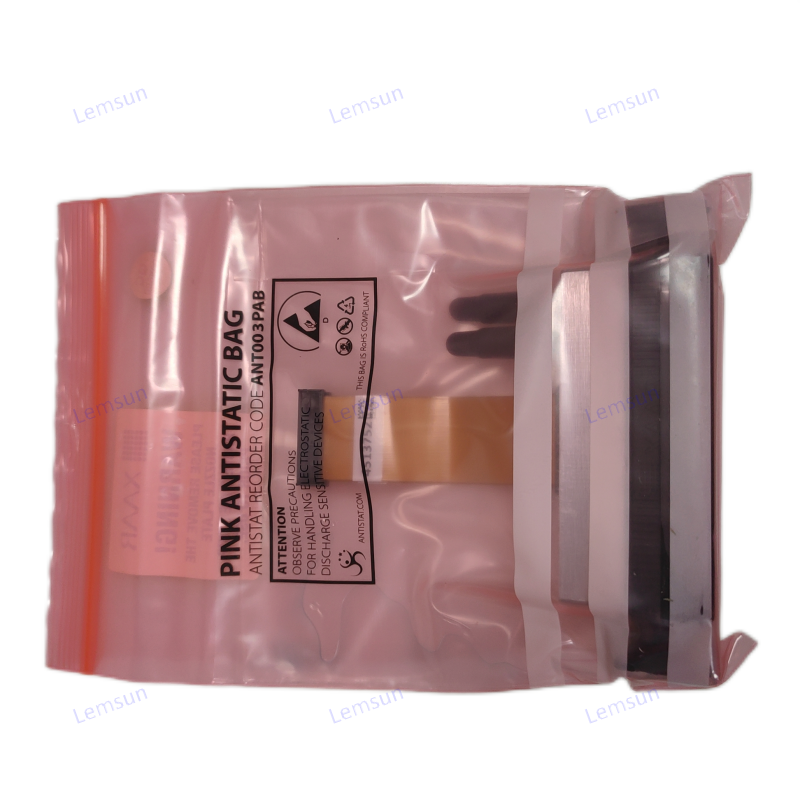

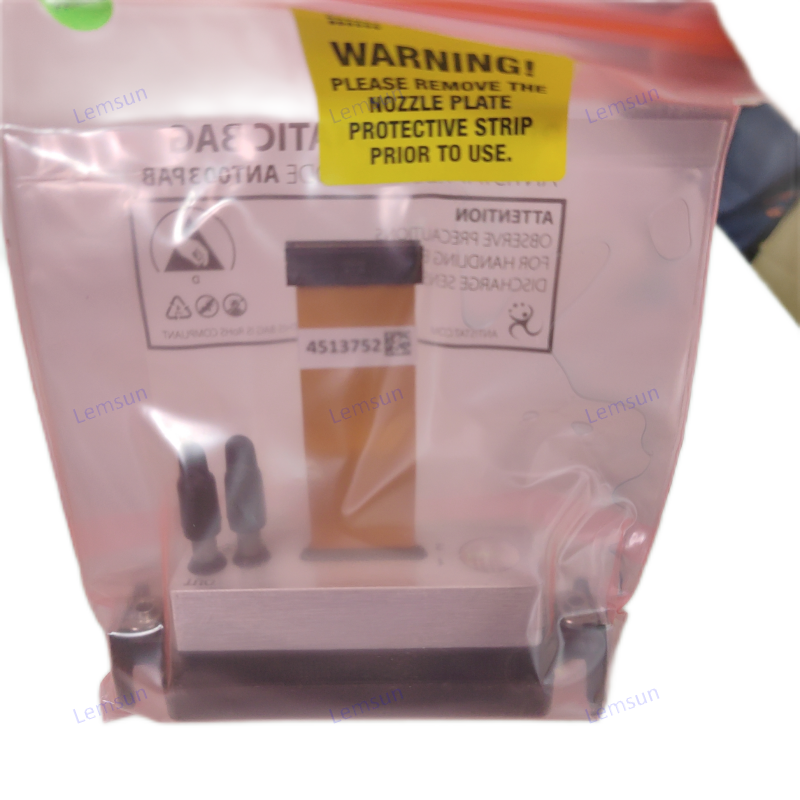

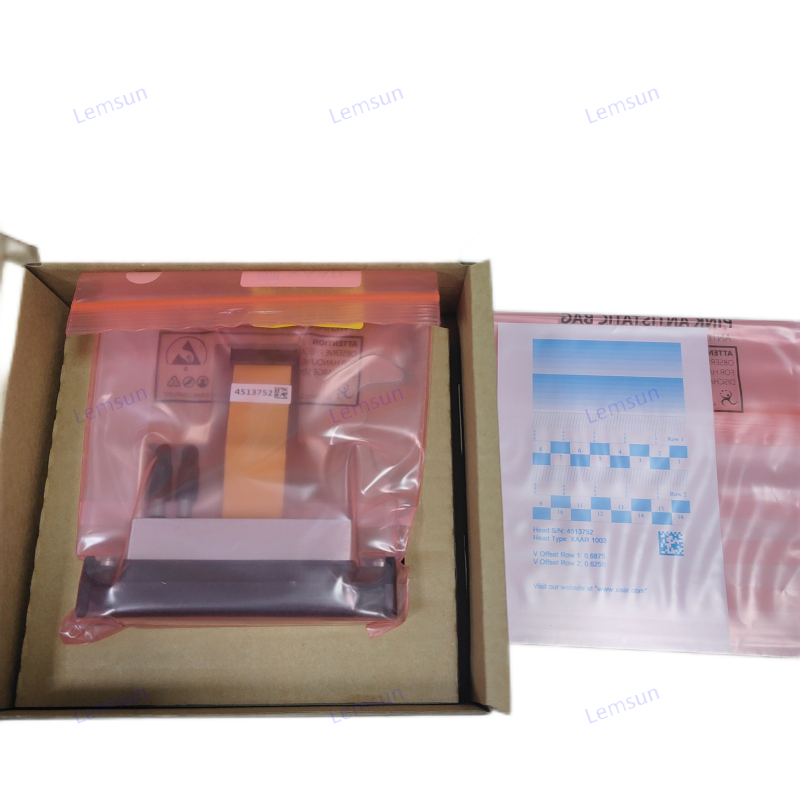

XAAR 1003 GS6C printhead

The Xaar 1003 GS6C printhead is designed for industrial ceramic digital printing where fine detail and controlled ink deposition are important.

Featuring 1,000 active nozzles, 360 npi nozzle density and a 6–42 pL drop range, the GS6C is particularly suitable for printing detailed patterns, textures and decorative designs on ceramic surfaces.

Its small-drop capability helps produce finer image details and smoother tonal transitions, making it a practical choice for ceramic tile production lines that require consistent print quality.

Lemsun Tech supplies Xaar printheads and replacement parts for industrial printing equipment. If you are replacing an existing Xaar 1003 GS6C, please provide your printer model and a clear photo of the original printhead label so that compatibility can be checked before ordering.

Xaar 1003 GS6C Specifications

Designed for Fine Ceramic Printing

Within ceramic digital printing, different printhead configurations may be selected according to the required ink laydown, image detail and production process.

The Xaar 1003 GS6C uses a 6–42 pL drop range, making it particularly suitable for applications where finer printing and controlled ink deposition are required.

Typical applications include:

• Ceramic wall tiles
• Decorative ceramic tiles
• Detailed patterns and surface designs
• Ceramic decoration production lines
• Industrial digital ceramic printers

Stable Ink Flow for Industrial Production

The Xaar 1003 series uses TF Technology®, which continuously circulates ink through the printhead.

This circulation helps maintain ink movement around the printhead and supports reliable operation in demanding industrial printing environments.

For ceramic production lines running for extended periods, stable ink delivery and consistent nozzle performance are important for reducing interruptions and maintaining print quality.

Replacing Your Xaar 1003 GS6C?

Printheads with similar appearances may have different configurations and applications. For this reason, we recommend confirming the exact model before placing an order.

Please send us:

• Printer brand and model
• Current printhead model
• Photo of the printhead label
• Ink type
• Required quantity

Our team can check the information before shipment to help reduce the risk of ordering an incompatible printhead.

Industrial Printhead Supply from Lemsun Tech

Lemsun Tech supplies printheads and spare parts for industrial digital printing equipment, with particular experience in components used for ceramic printing applications.

For Xaar 1003 GS6C availability, quotation or compatibility information, send us your printer details and required quantity.
