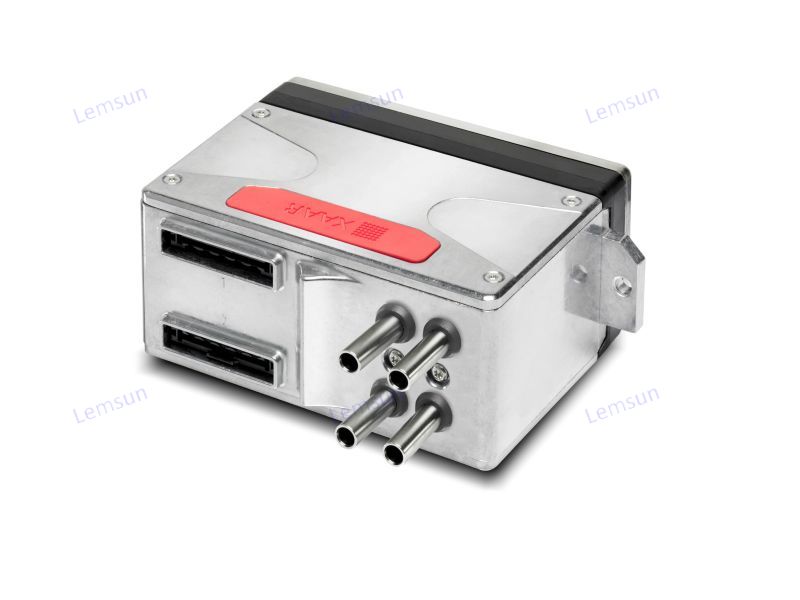

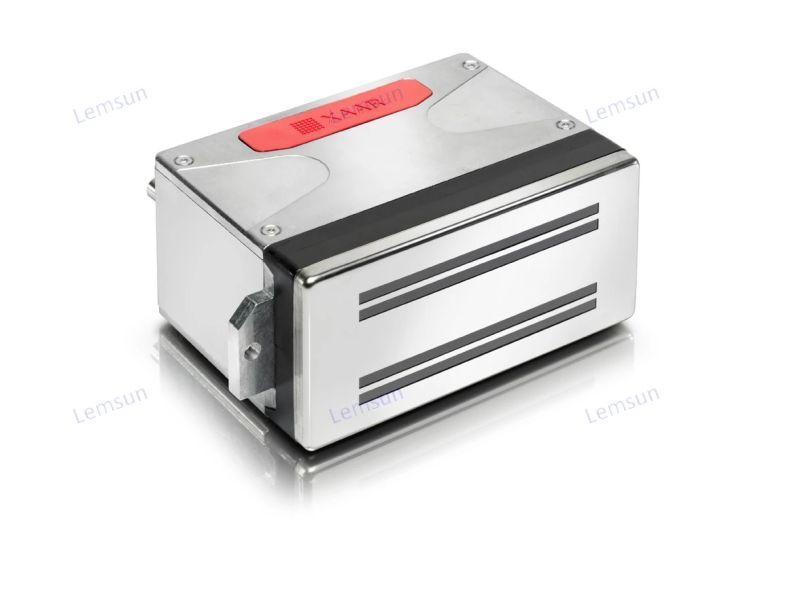

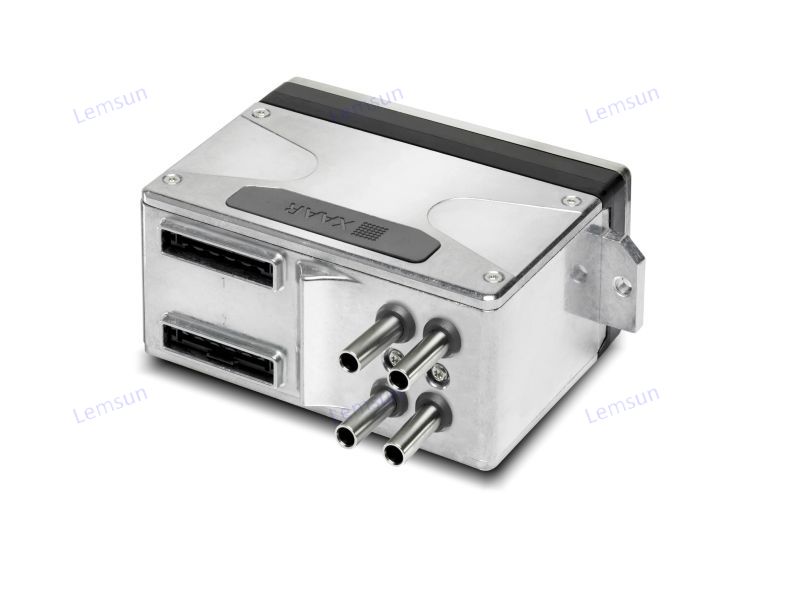

XAAR 2002+ GS6C GS12C GS40C Printhead
XAAR 2002+ GS6C GS12C GS40C Printhead
Short Description:
The XAAR 2002 printhead series offers high-performance piezoelectric inkjet technology for industrial printing applications. Available in multiple configurations (2002+, 2002 GS6, 2002 GS12), these printheads deliver precision droplet control, wide viscosity compatibility, and reliable operation for UV, solvent, and hybrid ink systems. Ideal for packaging, textiles, and direct-to-shape printing.
Original XAAR 2002+ GS6C GS12C xaar GS40C Printhead for Inkjet Printer
XAAR 2002+ (GS6C / GS12C / GS40C) Printhead – English Product Introduction
Key Specifications (Common for GS6C/GS12C/GS40C)
- Model: Xaar 2002+ (Plus) / GS6C / GS12C / GS40C
- Technology: Piezoelectric drop-on-demand (DOD) with TF Technology (True Flow) ink recirculation
- Nozzle Configuration: 2,000 active nozzles (2 rows × 1,000), 70.5 mm print width
- Physical Resolution: 720 dpi (nozzle density: 360 npi)
- Ink Compatibility: Oil-based, solvent-based, glass frits, soluble salts (2002+); UV-curable (Advanced variant)
- Operating Viscosity: Up to 100 cP (ultra-high viscosity capable)
- Construction: Robust industrial design with XaarGuard nozzle protection
- Lifespan: Rated for long-term industrial use (≥5 years with proper maintenance)
- Weight: ~150 g
Variant-Specific Parameters
| Parameter | GS6C | GS12C | GS40C |
|---|---|---|---|
| Droplet Size (grayscale) | 6–42 pL | 12–84 pL | 40–160 pL |
| Max Firing Frequency | 36 kHz | 36 kHz | 24 kHz |
| Max Ink Laydown | 22 g/m² | 44 g/m² | 85 g/m² |
| Grey Levels | 8 | 8 | 8 |
| Best For | Fine details, high resolution | Balanced quality & speed | Heavy laydown, special effects |
Core Advantages
-
Unmatched Print Quality & Consistency
Powered by AcuChp Technology (balanced actuator selection + individual chip trimming), the 2002+ delivers out-of-the-box uniform color tone across all nozzles and printheads. Lasered nozzles ensure precise drop placement (±4 μm accuracy), while 720 dpi resolution produces sharp text, fine lines, and smooth gradients.
-
TF Technology: Reliability & Low Maintenance
Xaar’s patented TF Technology recirculates ink directly past the nozzle back, preventing sedimentation, clogging, and air bubble buildup. Nozzles stay primed even during idle periods, reducing maintenance to once per shift or less and maximizing uptime.
-
Ultra High Laydown & Versatility
The High Laydown Technology enables up to 240 g/m² ink deposition (GS40C), ideal for gloss, metallic, adhesive, and reactive inks in ceramic/glass decoration. The 2002+ handles ultra-high viscosity fluids (up to 100 cP) for special effects like 3D textures, lustre, and carving inks.
-
Easy Integration & Serviceability
Plug-and-print design with enhanced alignment features (X-Datum ±20 μm) enables quick installation and setup. The printhead is serviceable (replaceable flex circuits/gaskets), reducing total cost of ownership (TCO) compared to disposable heads.
Common Applications
- Ceramic Tiles: Wall/floor tiles, digital glazing, special effects (matt, gloss, metallic)
- Glass Printing: Decorative glass, automotive glass, architectural glass
- Industrial Decoration: Packaging, labels, wood, metal, and synthetic substrates
- High-Laydown Effects: Braille, tactile varnishes, 3D textures, and adhesive coatings
